README

Warning

This package is under active development and is not yet recommended for production use. APIs, database schemas, and features may change.

English | Türkçe

Define multi-step business logic as visual, configurable graphs — then let Laravel execute them. Instead of scattering if/else chains, queue jobs, and event listeners across your codebase, you describe the entire flow once: trigger, conditions, actions, loops, delays. The engine handles execution, retries, logging, and human-in-the-loop pauses. Think N8N, but as a Laravel package you own and extend.

Full Documentation

Installation

composer require aftandilmmd/laravel-workflow-automation
php artisan vendor:publish --tag=workflow-automation-config --tag=workflow-automation-migrations
php artisan migrate

Quick Start

When a user registers, send a welcome email:

use Aftandilmmd\WorkflowAutomation\Models\Workflow;

$workflow = Workflow::create(['name' => 'Welcome Email']);

$trigger = $workflow->addNode('User Created', 'model_event', [
    'model'  => 'App\\Models\\User',
    'events' => ['created'],
]);

$email = $workflow->addNode('Send Welcome', 'send_mail', [
    'to'      => '{{ item.email }}',
    'subject' => 'Welcome, {{ item.name }}!',
    'body'    => 'Thanks for signing up.',
]);

$trigger->connect($email);
$workflow->activate();

Every User::create() call now triggers the workflow automatically.

Features

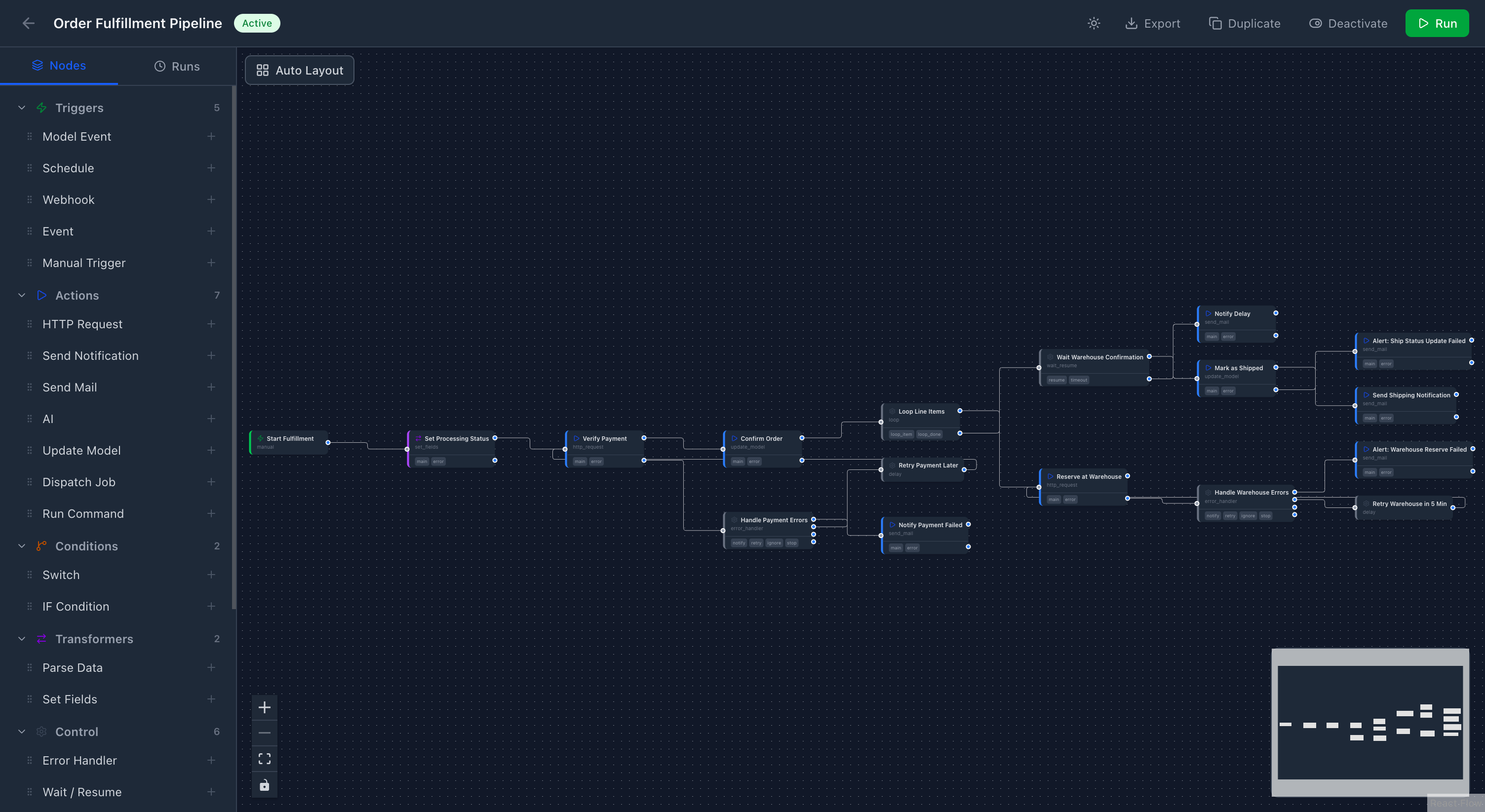

Visual Editor — Drag-and-drop workflow builder with React Flow canvas. Add nodes, connect ports, configure forms, execute and monitor — all from /workflow-editor.

26 Built-in Nodes — Triggers, actions, conditions, loops, delays, AI, and more. Connect them like building blocks to handle common automation scenarios without writing code.

Expression Engine — Use {{ item.email }}, arithmetic, ternary, and 30+ built-in functions in any config field. Custom recursive descent parser — no eval().

5 Trigger Types — Start workflows manually, on Eloquent model events, Laravel events, incoming webhooks, or cron schedules.

Human-in-the-Loop — Pause a running workflow and wait for external approval. Resume via code or REST API with arbitrary payload data.

Retry & Replay — Re-run failed workflows from the exact point of failure, replay completed runs with original payload, or retry individual nodes.

Custom Nodes — One PHP class with #[AsWorkflowNode] attribute. Define input/output ports, config schema, and execution logic — the engine handles the rest.

Plugin System — Bundle custom nodes, middleware, and event listeners into reusable plugins. Share across projects or publish as Composer packages.

Full REST API — Create, edit, run, and monitor workflows from any frontend, dashboard, or AI agent. Complete CRUD, execution, and registry endpoints.

Full Observability — Every run is recorded with per-node input/output, duration, and errors. Trace failures, debug responses, replay any run.

Testing

composer test

License

MIT
